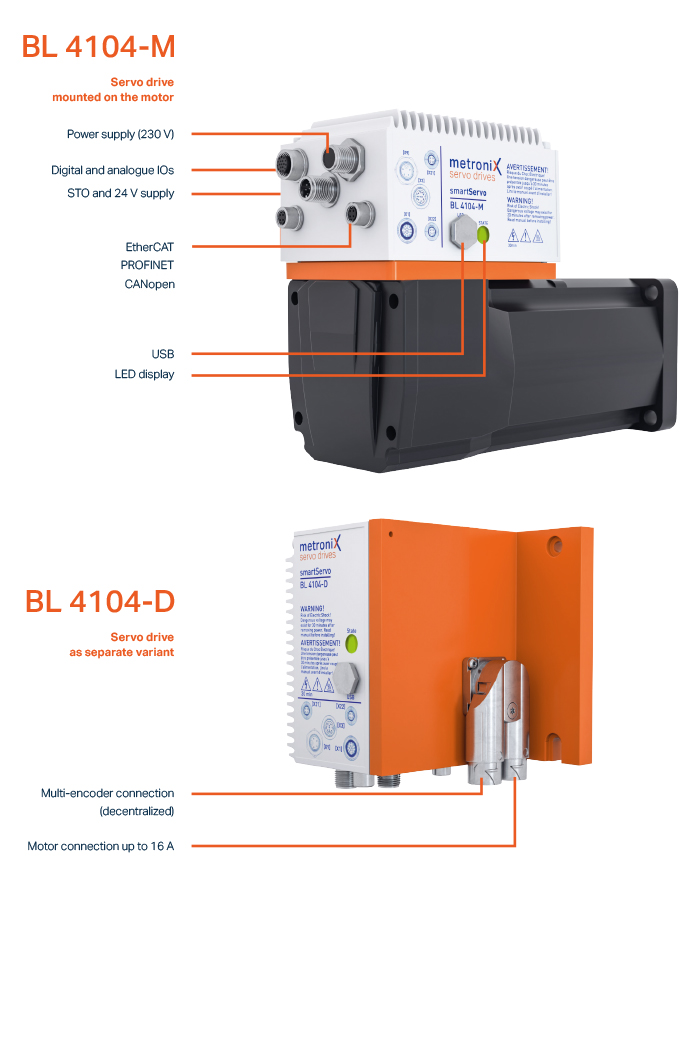

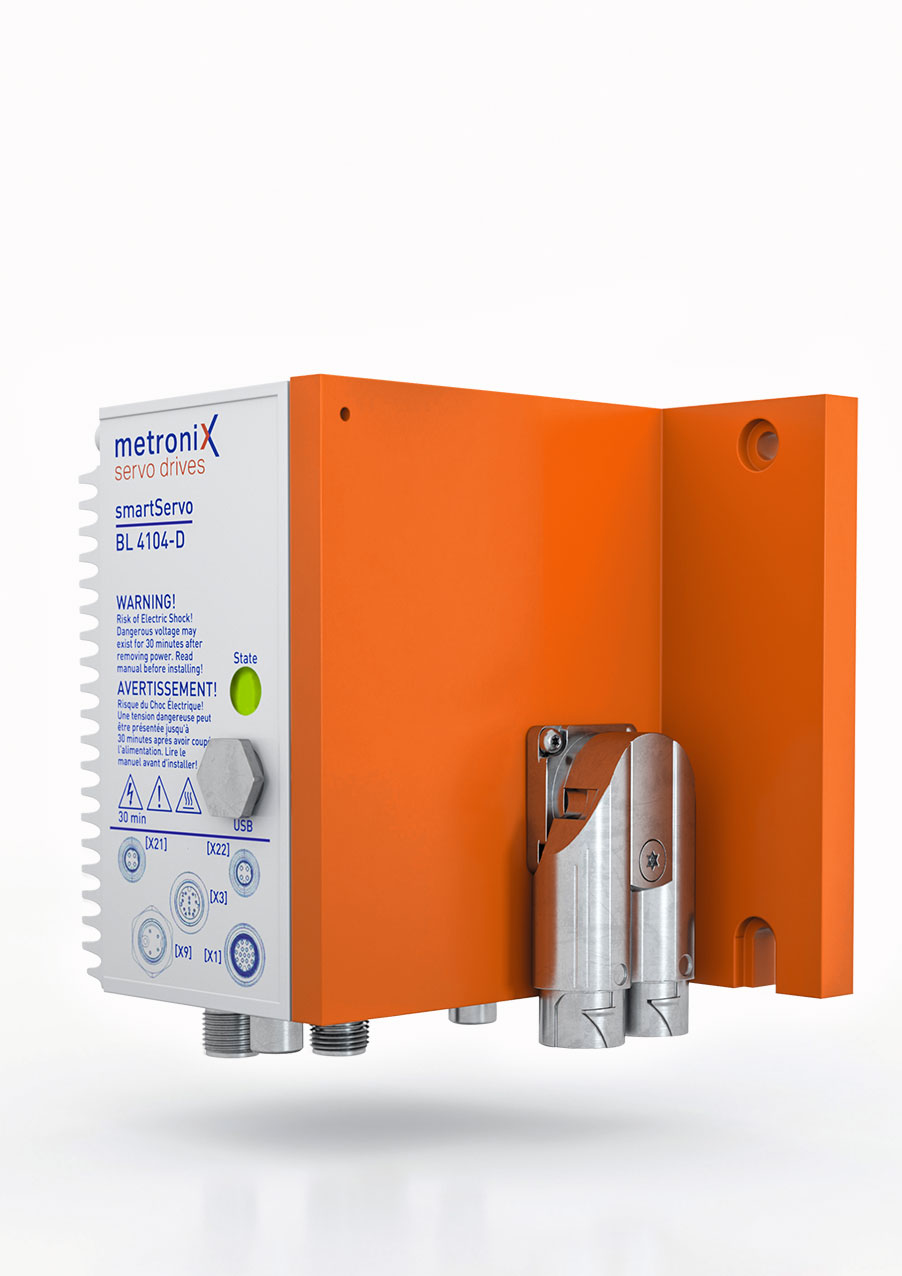

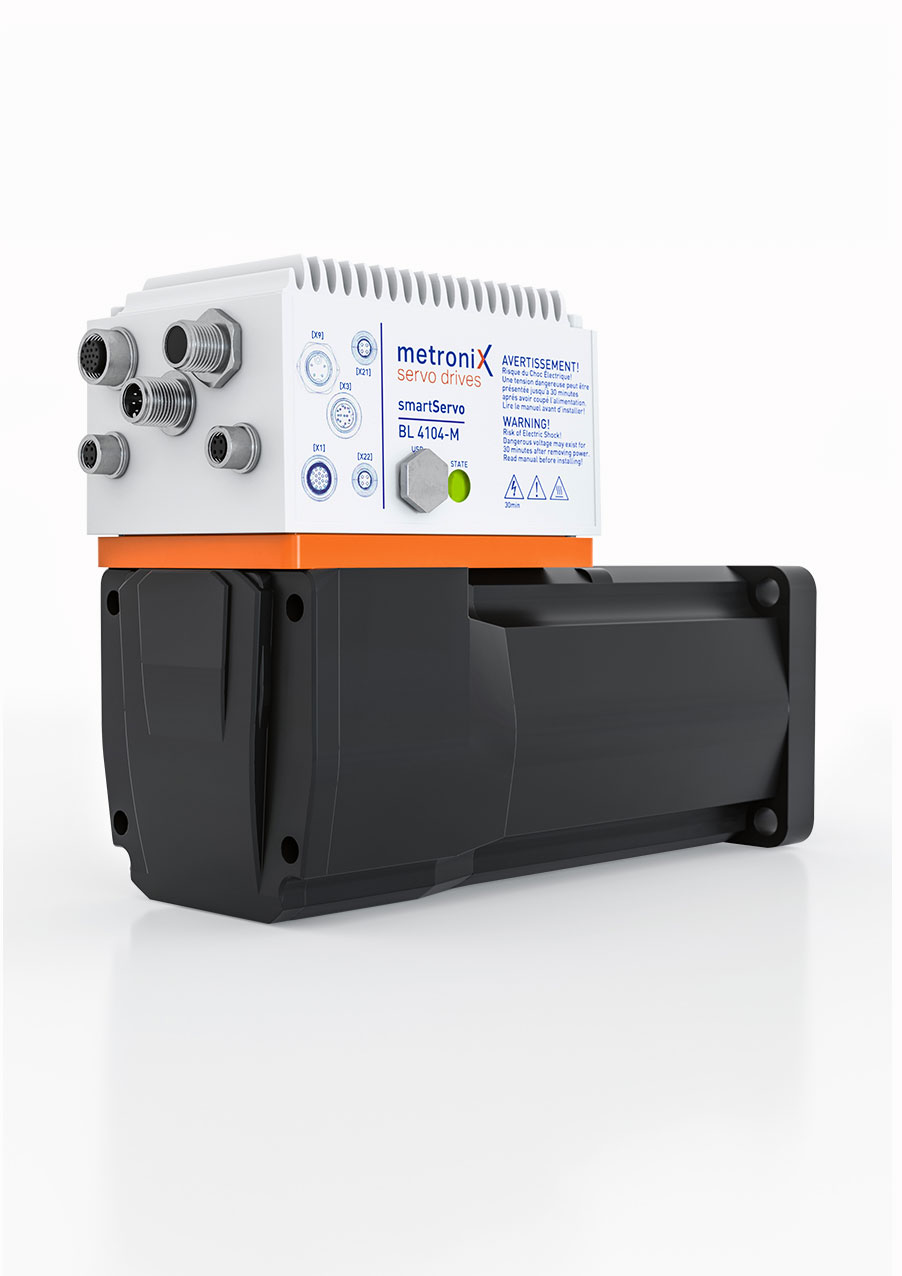

BL 4104-M/D 230 V

smartServo BL 4104–M/D

Decentralized servo drives

smartServo Decentralized
  • Saving of control cabinet volume
    • Usually no control cabinet is required for the servo drive
    • No wiring between motor and servo controller if the servo controller is installed on the motor
  • USB and Ethernet as parameterization interface
  • Fieldbus on board EtherCAT / PROFINET / Optional CANopen
  • Universal encoder evaluation HIPERFACE®, HIPERFACE DSL®, EnDat 2.2, resolver, digital and analog incremental encoder, BISS encoder evaluation
  • Bluetooth integrates, controller status query via smartphone or tablet

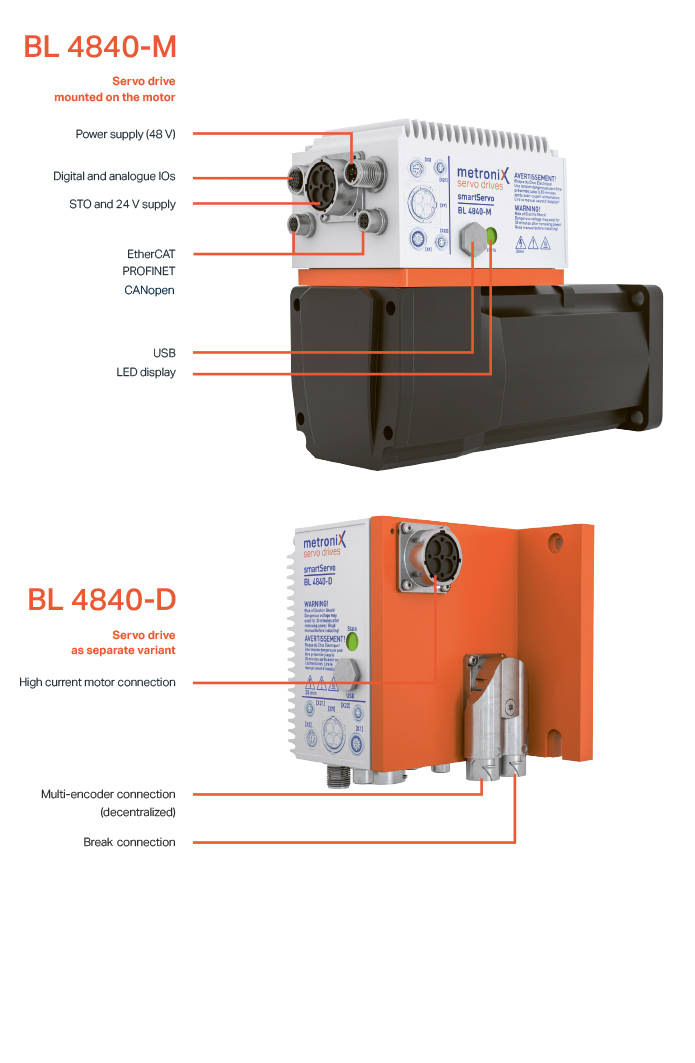

BL 4840-M/D 48 V

smartServo BL 4840-M/D

Decentralized servo drive

  • Saving of control cabinet volume
    • Usually no control cabinet for servo drives required
    • No wiring between motor and servo drive if the servo drive is installed on the motor
    • Low voltage supply of 48 V via PELV power supplies or batteries
    • No high voltages on the motor and on the servo drive
  • USB and Ethernet as parameterization interface
  • Fieldbus on board EtherCAT / PROFINET / Optional CANopen
  • Universal encoder evaluation HIPERFACE®, HIPERFACE DSL®, EnDat 2.2, resolver, digital and analog incremental encoder, BISS encoder evaluation
  • Bluetooth integrates, controller status query via smartphone or tablet

Safety

Safety functions

for safe sequences

STO - Safe Torque Off

Disconnection of the energy supply to the drive according to EN 61800- 5-2. This safety function ensures that the drive is unable to deliver energy.

SS1 - Safe Stop 1

The drive is braked self-sufficiently to idle within a defined time using a defined slowdown ramp and then the energy supply is switched off safely. All three versions described in the standard are supported.

Technical data

Technical data

Technical data

Servo drive smartServo BL 4000-C series
The small servo drive with great power with up to 40 A in a compact and robust design.

smartServo product series

Decentralized servo drive up to 40 A


To visualise the extreme performance of the smartServo BL 4000-M/D servo drive, we have chosen an example from nature: The ant can move objects that exceed its own body weight by a multiple. Just like the compact BL 4000-M/D, that moves for example a machine tool, a packaging machine or a robot precisely, dynamically and controlled. This is an important component for your future and current projects. In this way, together with you, we want to sum up your ideas to big, new projects.
