TMX-22

highly efficient multi-purpose geophysical power source


The TXM-22 is a highly efficient multi-purpose geophysical power source. It is designed for use in connection with the TXB-07 controller unit. The TXM-22 and TXB-07 form a powerful and flexible transmitter for geophysical applications such as Controlled Source Audio Magnetotellurics (CSAMT), Controlled Source Electro magnetics (CSEM) or Long Offset Transient Electromagnetics (LOTEM).

It can be operated in a wide frequency range between 0.001 Hz and 8,192 Hz. The output current is adjustable up to a maximum of +/-40A. The nominal output voltage is +/-560V.

The TXM-22 is powered by a 50/60Hz, 3-phase, 400V generator. In order to unleash the full capabilities of the system, a generator of min. 40 kVA should be used.


Additional images


Preparation

Preparation

roll out cables

roll out cables

systems

systems

generator

generator

field array

field array

dipole

dipole

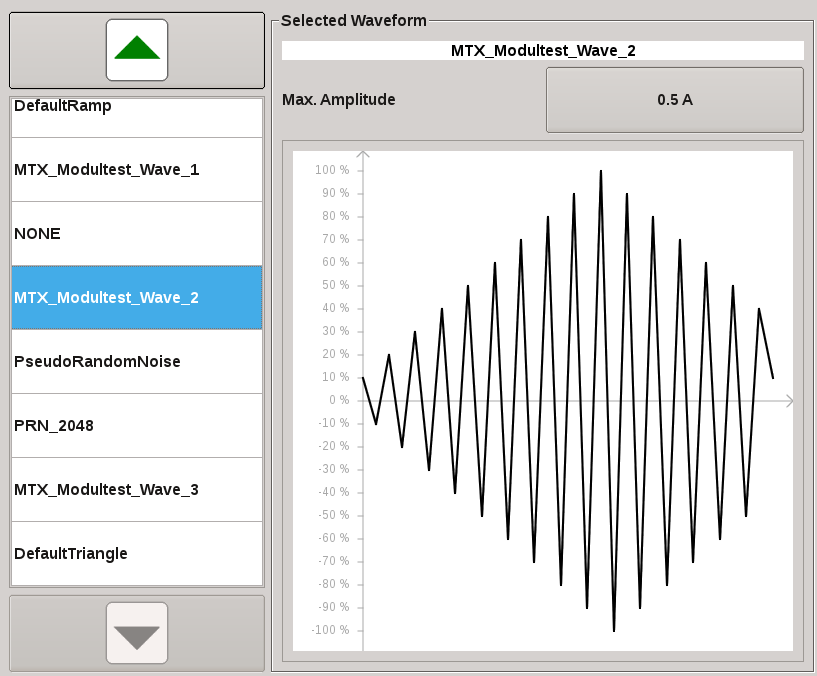

wave form edit

wave form edit

TX interface

TX interface

GSP synced cluster

GSP synced cluster

TXM accessories


Accessories

There are some items which are mostly not supplied directly from us. They are quite heavy or they can be bough locally at lower price:

  • Diesel generator
  • cables (600-1000m)
  • electrodes
  • insulation transformer


Insultation Transformer

Most Important for alomost all users:

Due to safety regulations you need a insulation transformer. An insulation transformer is a transformer wich "transforms" the volatge 1:1 (normal transformer would do 1:10 for example to transform 2kV down to 220V). The dimension of the insulation transformer must be 20% bigger than the generator;if your generator has 32kVA you take a transormer for 38-40 kVA..

You inject currents into the ground with the transmitter; and you generate electricity with the generator.
The generator must be grounded; however - you try to ground the into the same earth where you inject the currents.
The ELCB (earth leakeage circuit braker) will break and stop the generator.
To prevent this you must have a insulation transformer to seperate source from currents.

Price is around 3200 EUR plus transportation. Examples here amadori srl (this first three phase transformer which appears in the list for example).

THREE-PHASE TRANSFORMERS
DRY Type POWER Series
Normal losses
According to IEC 726 CEI 14-8   EN 60076-1

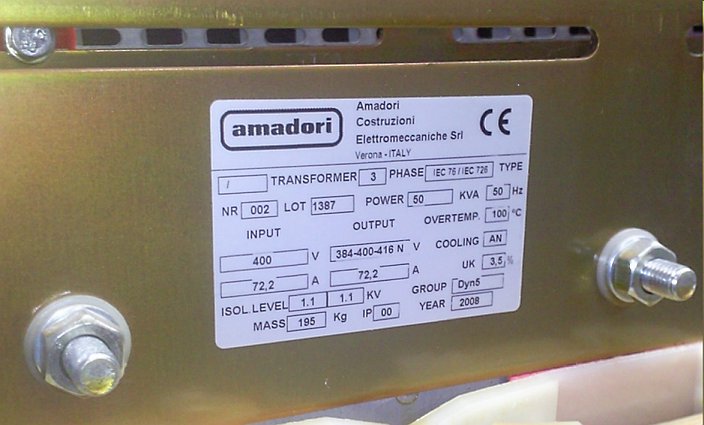

Insultation Transformer

Cables

  • 10mm2 double insulated cables, length as you want (500 to 1000m, 1500m)
  • 6mm2 , single insulated is also possible. Smaller cables will get too hot and burn.

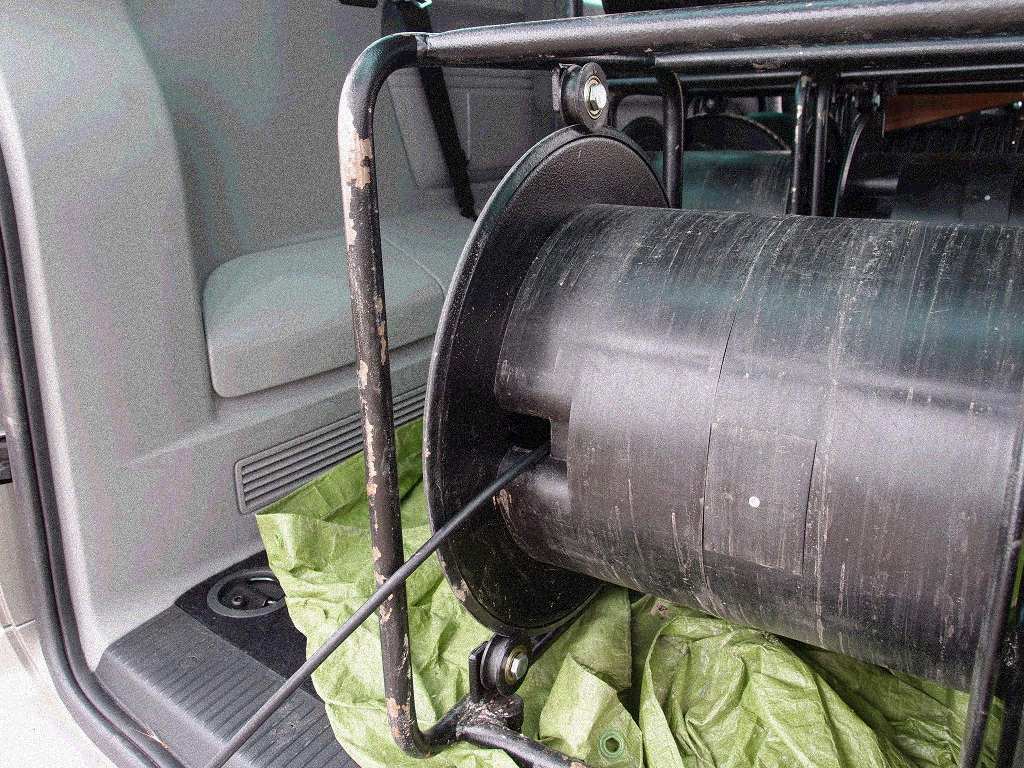

(first picture shows 10mm2 double insulated cable, for highest security)

10mm2 double insulated cable

6mm2 default cable on cable drum / winch

6mm2 default cable

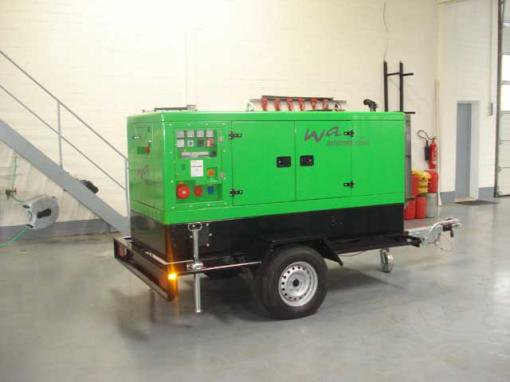

Diesel Generator

As source you can use ANY 380 - 440 V / 50-60 Hz power generator with 40kVA and more.
Deutz diesel generators start at 19,200 EUR (trailer mounted) and shipment starts at 3200 EUR.
It may be recommended to buy similar in your country.



Diesel Generator Small

A smaller transmitter (20 kVA) can be used for small dipoles in more resisitive areas.
If the current gets too high, the TXM-22 can limit the output current to prevent the generator to be overpowered.

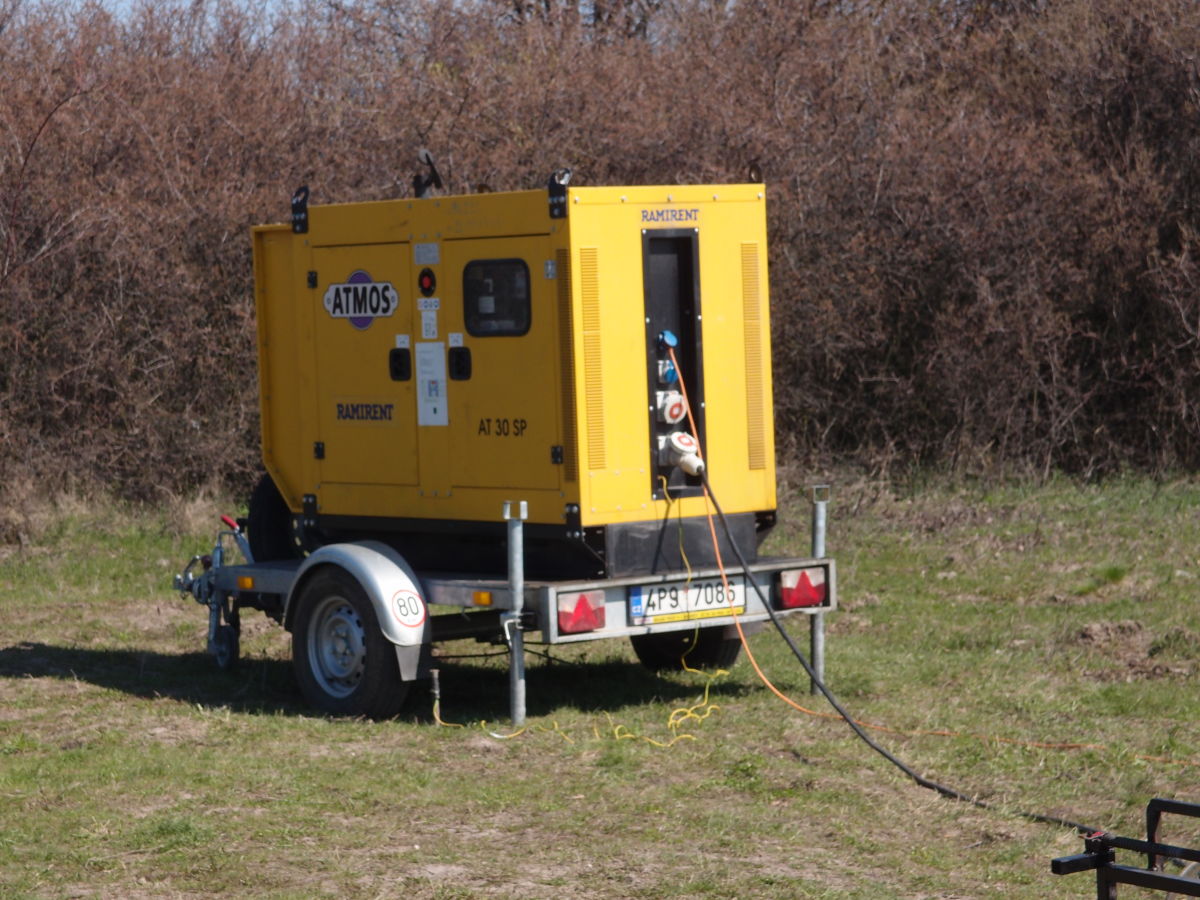

A smaller generator with 30 kVA:

A smaller transmitter (20 kVA)

Electrodes

Eletrodes can be rods; some institutes use rods down to 7m into the ground (as the geologists use for probes).
In humid (wet) areas some use plates or even aluminum foil (for example inside rice fields).

Electrode examples:

Electrodes

picture below shows high security electrode, upper part shielded

Electrodes

more simple electrodes


electrodes connectred to ground

In most areas deep burriage is preferred, because at greater depth the humidity is constantly higher and the transmitted currents are well coupled to the ground.

Electrodes
