The Super High-Frequency induction coil Triple SHFT-02e has been developed for applications in Audio Magnetotellurics (AMT), Radio Magnetotellurics (RMT) and Controlled Source Magnetotellurics (CSMT). It covers a frequency range from 1 kHz up to more than 300 kHz.. The SHFT-02 shows outstanding low-noise characteristics, and a stable transfer function over temperature and time. The SHFT-02 is a result of more than 30 years of experience of metronix in the design, manufacture and application of induction coil magnetometers.

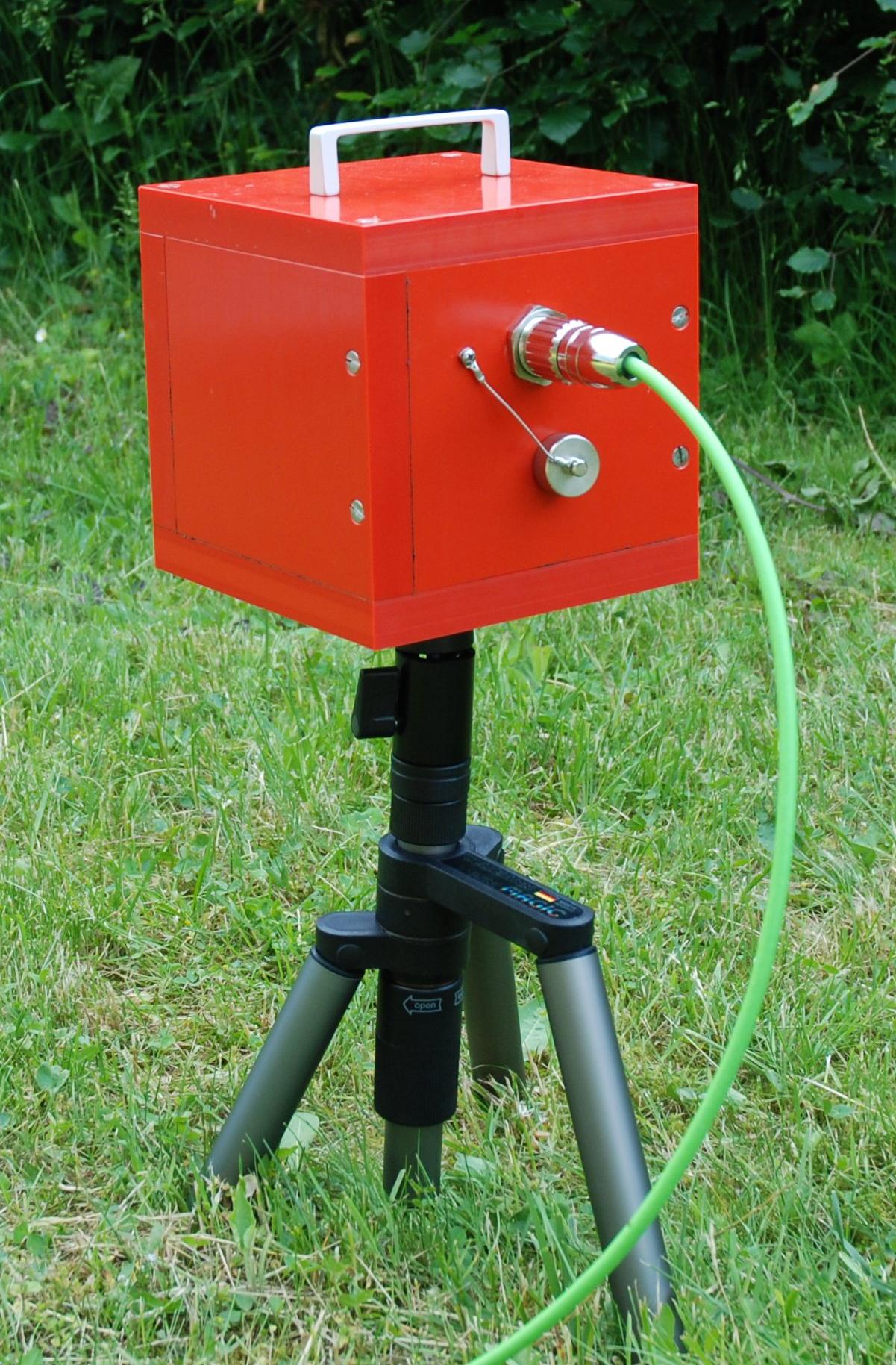

Only one SHFT-02e is required to measure the magnetic field variations in 3 orthogonal axis. The sensors and its electronics are enclosed in a shock resistant plastic case. The SHFT-02e is connected to the metronix ADU-07 data logger (or any other custom electronics) by a cable of up to 10 m length. The high quality of the SHFT-02e data is achieved by a unique design for the ultra low noise preamplifier.
As all sensors of the e-series the SHFT-02e has a chip with intergrated calibration function and can be auto-detected by the ADU-07e.
1 kHz ..... 300 kHz
1 kHz ..... 300 kHz (chopper off)
n/a (chopper on)
5*10-5 nT/√Hz @ 1 kHz
8*10-6 nT/√Hz @ 10 kHz
6*10-6 nT/√Hz @ 100 kHz
0.05 V/ nT f > 1kHz
for exact values refer to individual calibration file
|Output voltage range|
Induction coil with current amplifier
17 pole M23 connector
+/- 12V to +/- 18V internally stabilized and filtered
+/- 60 mA
appr. 5.5 kg
|External dimensions, without tripod|
170 x 190 x 170 mm (LxWxH)
|Operating temperature range|
-25°C ..... + 60°C
